Foil Drive Assist SLIM

Description
The Foil Drive Assist Slim is the smaller, lighter, performance-orientated model for the ultimate in performance hybrid electric assist foiling. Despite its small size, it offers plenty of thrust to get you on foil easier and sooner. However, the smaller batteries reduce the run time.

The Assist Slim is perfect for advanced, high-performance riders or wingers/downwinders that do not require lots of battery capacity.

The kit includes everything you need to turn your existing foil and board into an electric-assisted foiling machine:

• Universal Mast Adaptor that suits 99% of foil masts available

• v2 Motor with 20 cm cable length as standard (cable lengths are easily interchangeable for ultimate customization with the new Removable V2 Motor Cable)

• Bluetooth Connectivity to the Foil Drive Mobile App

Battery Options:

• Slim Performance Battery (now comes with 2x batteries for the same price!)

• Slim Endurance Battery (requires a 28v charger, additional purchase)

• Slim Travel Battery

Integrated Mast Options:

• Assist Slim x NoLimitz Integrated Mast

• Assist Slim x Axis Integrated Mast

The Foil Drive Assist Slim is perfectly suited to riders looking for an extra boost to get on foil or to ride smaller boards and foils. It is not suitable for prolonged periods of motor-assisted riding; it simply provides the boost to get up on foil and ride more. Advanced surf and downwind riders will love the low profile and weight but need to be disciplined with throttle usage. Wing foilers usually do not need long run times and will also appreciate the lightweight, slim design.

Note: Boards with carbon tracks may experience connectivity issues. See our external antenna option.

What’s Included

• Choice of Slim Battery

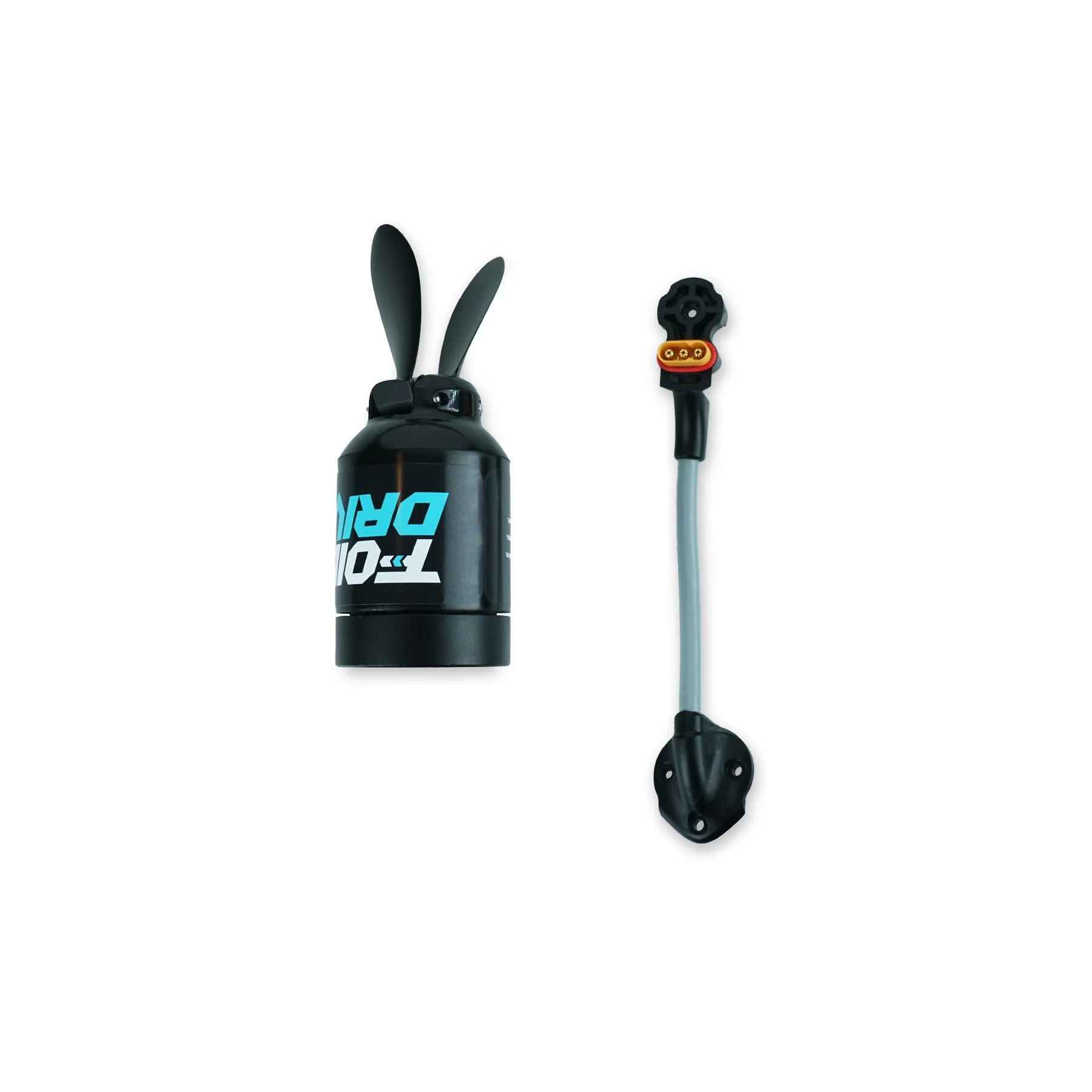

• v2 Motor with 20 cm Cable as Standard

• Universal Mast Adaptor (now included)

• Foil Drive Assist Slim Electronics Box

• Motor Plug Protector with Keychain

• Foil Drive Nose Cone C

• Foil Drive Nose Cone D

• Foil Drive Universal Motor Pod – Rear

• Foil Drive Universal Motor Pod – Short Nose

• Foil Drive Universal Motor Pod – Long Nose

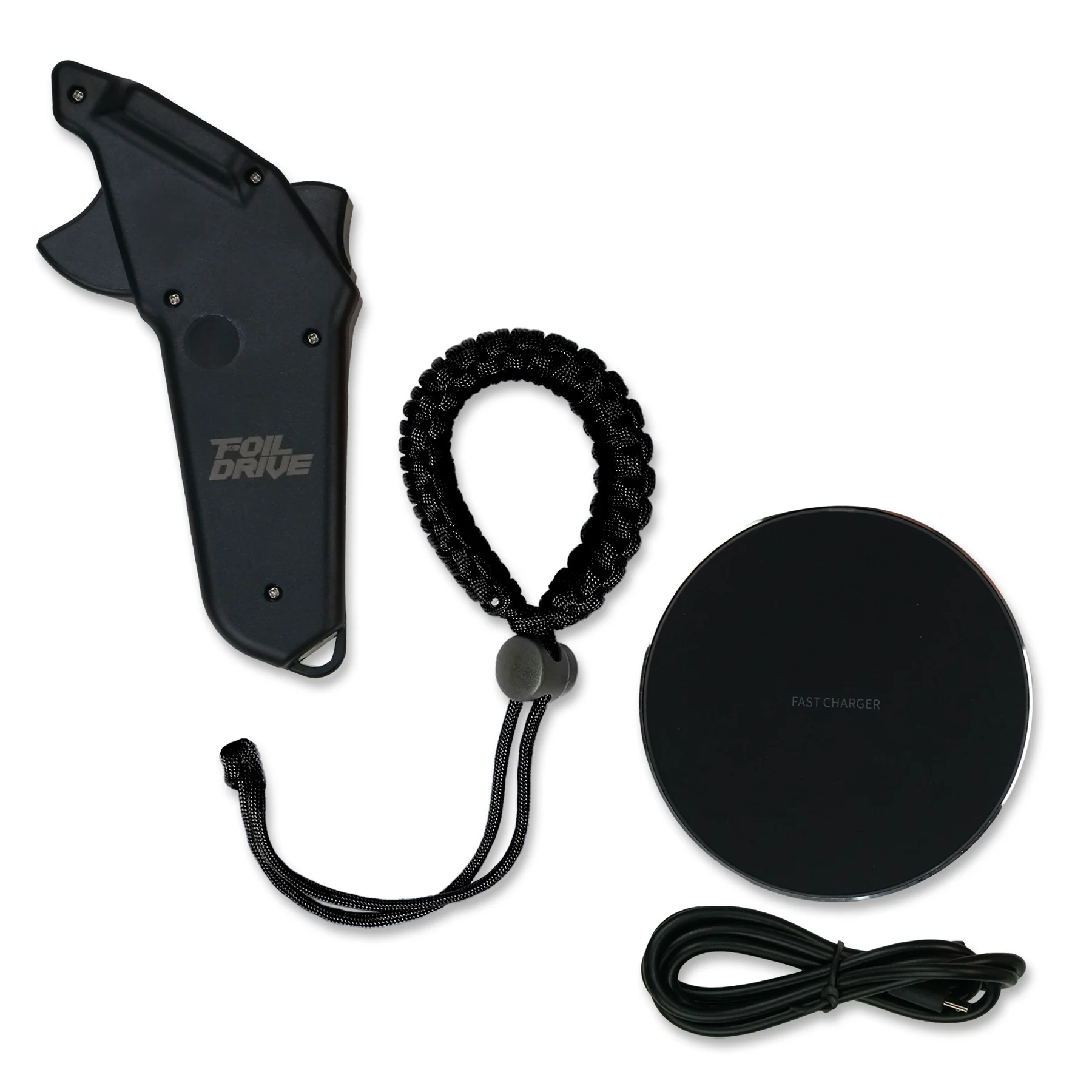

• Foil Drive v2 Wireless Throttle Controller

• Foil Drive Controller Wrist Strap

• Foil Drive Mast Cable Guide 23 cm

• Foil Drive Controller Wireless Charge Pad

• Micro USB Cable

• 40v Standard Foil Drive Charger 4 amp

• Power Lead (AU, US or EU)

• 2x Mast Track Foam Inserts

• 2x Nose Cone Rocker Pad

• 2x Battery Grease

• 4x M8 Assist Slim Mast Plate Bolts 60 mm

• 4x M6 Assist Slim Mast Plate Bolts 60 mm

• Foil Drive 2.5 mm Driver

• Pick Tool

• Torx T40 Tee Handle Driver

• Torx T30 Tee Handle Driver

• Foil Drive Cleaning Cloth

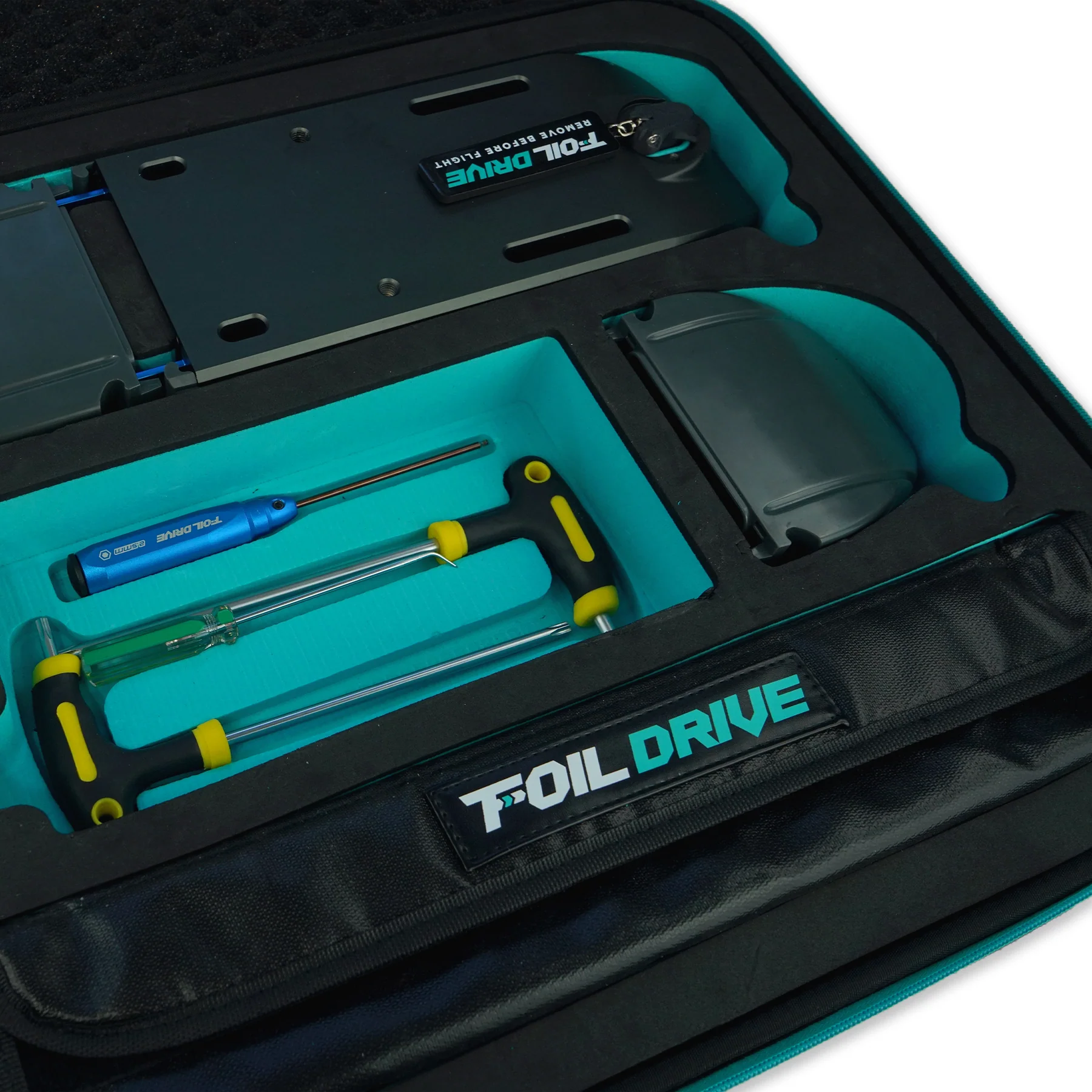

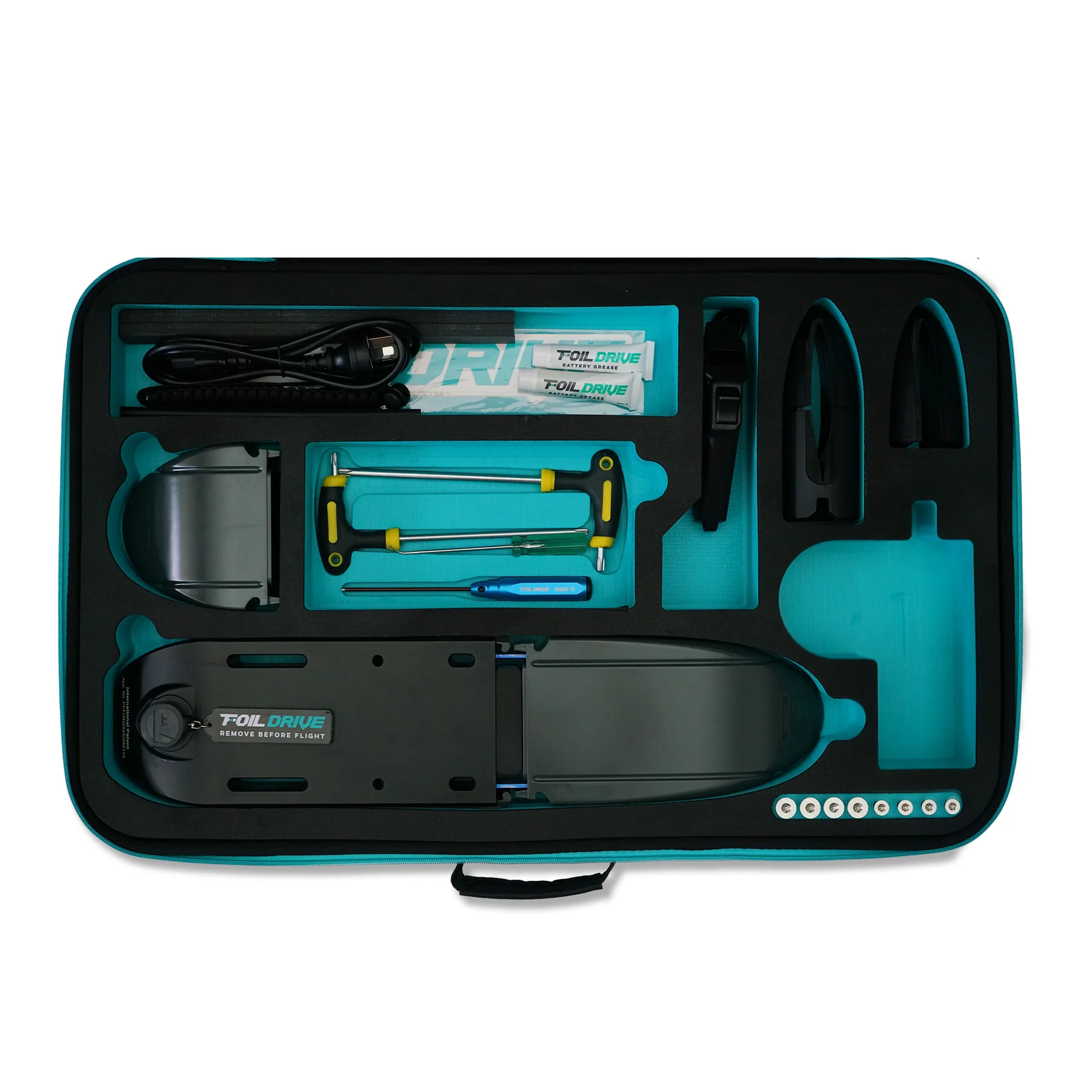

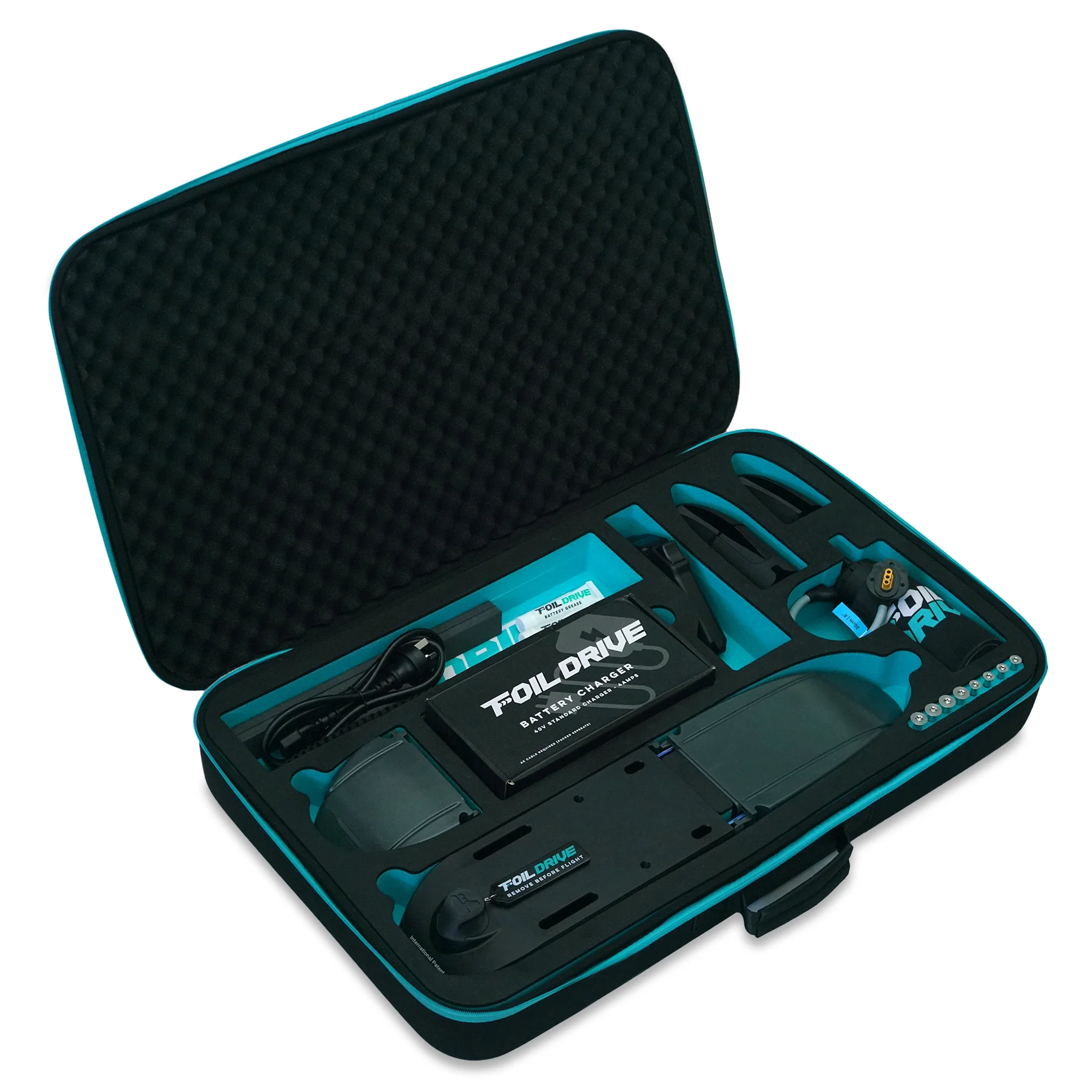

• Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag

• 4x M8 Locking Tee Nuts

• 4x M6 Locking Tee Nuts

• 4x M3 x 20 mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag

• 4x Motor Pod Bolts (M3 x 12 mm)

• 3x Puck Bolts (M3 x 12 mm)

• 3x Motor Plug Bolts (M4 x 10 mm)

Spare Parts Bag

• 2x O-Ring Seals – Foil Drive Assist Slim

• 2x Latch Assembly – Foil Drive Assist Slim

• 3x Motor Plug Bolts (M3 x 12 mm)

• 4x Motor Pod Bolts / Puck Bolts (M3 x 12 mm)

• 4x Latch Locking Bolts (M3 x 16 mm)

• 2x Propeller Bolts (M3 x 30 mm)

• 2x Latch Pivot Bolts (M3 x 45 mm)

Compatible With

• Assist Slim

• Slim Performance Battery (x2)

• Slim Endurance Battery

• Slim Travel Battery

• Project Cedrus Integrated Mast for Gen2

• AXIS Integrated Mast for Gen2

Tech Specs

• Max Thrust: 25.5 kg (56.2 lbs)

• Total Install Weight: 4.2 – 3.75 kg (9.2 – 8.2 lbs)

• Dimensions with Longer C Battery: L510 x W250 x H35 mm
