2022/23 Naish Jet Foil Series for maximum performance
There are three versions:
Jet Foil HA (High Aspect) Semi Complete (=no mast)
Jet Foil MA (Medium Aspect) Semi complete (=no mast)
Jet Foil Standard (Low Aspect) Semi Complete (=no mast)
Here are the main differences between these models.
High Aspect (HA) Foil:
High aspect foils typically have longer wings with a narrower chord (width) and a higher aspect ratio (length to width ratio).
These foils are known for providing greater efficiency and speed, making them suitable for advanced users and those looking for maximum performance.
High aspect foils are often preferred for racing and advanced foiling maneuvers due to their reduced drag and improved lift-to-drag ratio.
Medium Aspect (MA) Foil:
Medium aspect foils strike a balance between the characteristics of high and low aspect foils.
They are versatile and can cater to a wider range of riders, offering a good compromise between stability, speed, and maneuverability.
Medium aspect foils are suitable for intermediate foilers who want a balance of performance and control.
Low Aspect (LA) Foil:
Low aspect foils typically have shorter wings with a wider chord, resulting in a lower aspect ratio.
These foils are known for providing more stability and ease of use, making them suitable for beginners and those who prioritize comfort over maximum speed.
Low aspect foils are often chosen for learning to foil and for cruising at lower speeds.
When comparing the 2022 Naish Jet Foil HA, MA, and Standard models, you can expect the High Aspect to prioritize performance and speed, the Medium Aspect to offer a balance of features, and the Standard (Low Aspect) to focus on stability and ease of use.
The high number (for example 1600) gives you the surface of the front wing in cm2.
Scope of delivery: Jet front wing + EVA cover Stabilizer Jet HA + EVA cover Fuselage Carrying case Torx screwdriver and required screws (5x 20 mm M6/4x 30 mm M6 + T Nuts)
1750
DESCRIPTION
The Universal ALU foil set is the tool to enter the exhilarating foil dimension. You can switch the use of this phenomenal set from Wing, to Surf, to SUP, to Kite foiling without the need to change your hydrofoil! This hydrofoil is capable of speeding up the learning process as you never thought was possible.The new Universal SW alu is available in two versions with 75 cm or 85 cm aluminum mast. The 75 cm mast is recommended to better keep control during your first flights, while the 85 cm mast is preferable once you progress and are able to ride for longer distances.The new Universal SW 1750 full carbon front wing is the engine of the whole system. Its generous wingspan and thicker profile will create the right lift to start foiling at low board speed and help to keep stability and control once you are flying! Your jibes and tacks are going to be so easy and you will learn how to pump on flat water or ground small swell. The rear wing is 52 cm wide and has a negative dihedral angle of -26°. This angled wing design improves the “pumping” and carving ability of the foil. This hydrofoil is capable of speeding up the learning process as you never thought was possible!
Recommended for novice riders, the ideal hydrofoil for schools.
UNIVERSAL SW ALU 1750 – 75 DELIVERED WITH:
UNIVERSAL ALU MAST 75 WITH PLATE and EVA COVER Y26
UNIVERSAL FULL CARBON FRONT WING 98/1750 with PADDED COVER Y26
UNIVERSAL FULL CARBON REAR WING 52/373 Y26 with PADDED COVER Y26
FUSELAGE 76 with EVA COVER Y26
M8 TORX SCREWS & KEY SET
M6 TELESCOPE SCREWS & KEY SET
UNIVERSAL SW ALU 1750 – 85 DELIVERED WITH:
UNIVERSAL ALU MAST 85 WITH PLATE and EVA COVER Y26
UNIVERSAL FULL CARBON FRONT WING 98/1750 with PADDED COVER Y26
UNIVERSAL FULL CARBON REAR WING 52/373 Y26 with PADDED COVER Y26
FUSELAGE 76 with EVA COVER Y26
M8 TORX SCREWS & KEY SET
M6 TELESCOPE SCREWS & KEY SET
DESCRIPTION
The Universal ALU foil set is the tool to enter the exhilarating foil dimension. You can switch the use of this phenomenal set from Wing, to Surf, to SUP, to Kite foiling without the need to change your hydrofoil! This hydrofoil is capable of speeding up the learning process as you never thought was possible.The new Universal SW alu is available in two versions with 75 cm or 85 cm aluminum mast. The 75 cm mast is recommended to better keep control during your first flights, while the 85 cm mast is preferable once you progress and are able to ride for longer distances.The new Universal carbon front wing 2400 is your ticket to learn how to fly in literally no time and with the lightest wind. Its large and generous dimensions with extra thick profile will let you take off with ease and learn your first jibes and tacks. The rear wing is 52 cm wide and has a negative dihedral to improve the “pumping” and carving ability of the foil.
Recommended for novice heavy weight riders, the ideal hydrofoil for schools.
UNIVERSAL SW ALU 2400 – 75 DELIVERED WITH:
UNIVERSAL ALU MAST 75 WITH PLATE and EVA COVER Y26
UNIVERSAL FULL CARBON FRONT WING 110/2400 with PADDED COVER Y26
UNIVERSAL FULL CARBON REAR WING 52/373 Y26 with PADDED COVER Y26
FUSELAGE 76 with EVA COVER Y26
M8 TORX SCREWS & KEY SET
M6 TELESCOPE SCREWS & KEY SET
UNIVERSAL SW ALU 2400 – 85 DELIVERED WITH:
UNIVERSAL ALU MAST 85 WITH PLATE and EVA COVER Y26
UNIVERSAL FULL CARBON FRONT WING 110/2400 with PADDED COVER Y26
UNIVERSAL FULL CARBON REAR WING 52/373 Y26 with PADDED COVER Y26
FUSELAGE 76 with EVA COVER Y26
M8 TORX SCREWS & KEY SET
M6 TELESCOPE SCREWS & KEY SET
HIGHLIGHTS
Lightwind Wing Foiling
Reflexed technology for stability and speed
Self-trimming
WHAT RIDERS SAY
"This is the easiest to ride hydrofoil I’ve ever been on in my life." - George Hradil
Wing / SUP / Surf
The new 2200R reflexed wing is brilliant for lightwind wing-foiling. Unbelievable stability and slow stall speed through the turn makes learning gybes and tacks easier, giving newer riders confidence to try more manoeuvres and progress quickly. Smooth carvy turns in prone for heavier riders and in SUP foiling. Touchdowns are a breeze. Featuring our new, specialised reflexed-camber foil section design to give the wing pitch stability. This eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave. The 2200R has a relatively large surface area, which makes it highly controllable, with incredible roll and pitch stability. Usually, a large wing means more drag, hence less speed. But because it is positioned on the fuselage with a lower angle of attack, the 2200R feels smaller than it is in terms of speed range and responsiveness.
Lightwind Wing Foiling
A performance crossover wing with smooth carvy turns in prone for heavier riders and in SUP foiling. Brilliant for lightwind wing-foiling
Reflexed technology for stability and speed
Our new, specialised reflexed-camber foil section design gives the wing pitch stability all on its own. It’s like we’ve built a mini-stabilizer into the trailing edge of the wing.
Self-trimming
The reflexed wing prevents your board’s tendency to nose up strongly when you first get going. Thus it eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave.
DETAILS
INCREDIBLY STABLE
Gives newer riders confidence to try more manoeuvres and progress quickly
PRE-PREG CARBON TECHNOLOGY
Ultimate high-performance composite material
LIGHTWIND WING FOILING
A performance crossover wing with smooth carvy turns in prone for heavier riders and in SUP foiling. Brilliant for lightwind wing-foiling
REFLEXED TECHNOLOGY FOR STABILITY AND SPEED
Our new, specialised reflexed-camber foil section design gives the wing pitch stability all on its own. It’s like we’ve built a mini-stabilizer into the trailing edge of the wing which counters the downward pitching moment and gives you impressive control throughout the entire speed range, with extreme top-end speeds unheard of for a wing that size.
SELF-TRIMMING
The reflexed wing prevents your board’s tendency to nose up strongly when you first get going. Thus it eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave.
MASSIVE RANGE, LOW STALL-SPEED, INCREDIBLE CONTROL
The Sonar reflexed wings have a relatively large surface area, which makes them highly controllable, with incredible roll and pitch stability. Usually, a large wing means more drag, hence less speed. But because you can position the reflexed wings on the fuselage with a lower angle of attack, they feel smaller than they are in terms of their speed range and responsiveness.
Our new highest quality pre-preg carbon mast delivers a stiffer, more direct feel and more immediate feedback. Tapered for optimal load transfer and lower surface friction, the refined one-piece design presents a strong, durable and corrosion-free choice across all disciplines. The CF72 mast is ideal for shallower waters, and prone surf foiling. The longer CF85 mast increases overall ride performance in choppy conditions. Features GeoLock.
HIGHLIGHTS
Sonar CF72 or CF85 Mast
Easy recovery from surface breaching
Carbon Fuselage 600mm
WHERE IT THRIVES
Wing, SUP or Surf foiling
WHAT RIDERS SAY
"Nothing beats the feel of carbon." - UIi Sommerlatt
Beyond Limits
Insane response. Incredible performance. Our new highest quality pre-preg carbon modular foil edition provides a stiffer, more direct feel and more immediate feedback. Engineered with increased strength for higher loads, the Carbon Edition excels across all foiling disciplines. The refined one-piece mast design is tapered for optimal load transfer and lower surface friction, and features our unique GeoLock system. Comes complete with our new high-strength 600m pre-preg carbon fuselage and S01 Stabilizer for a durable, corrosion-free foil with great pumpability and a sporty feel with earlier take-offs. The CF72 mast is ideal for shallower waters, and prone surf foiling. The longer CF85 mast increases overall ride performance in choppy conditions.
Sonar CF72 or CF85 Mast
New highest quality pre-preg carbon mast for a stiffer, more direct feel and more immediate feedback. Tapered for optimal load transfer and lower surface friction. Refined one-piece design - strong, durable and corrosion-free.
Easy recovery from surface breaching
In perfect harmony with any Front Wing, our dihedral-shaped carbon pre-preg rear Stabilizer provides control and riding comfort, allowing fast pivoting turns and easy surface breach-recovery.
Carbon Fuselage 600mm
New high-strength 600m pre-preg carbon fuselage weighs ~50% less than the A600, with equal strength and stiffness. Strong, durable and corrosion resistant. Improves pumpability. Earlier take-offs.
DETAILS
SONAR CF72 OR CF85 MAST
New highest quality pre-preg carbon mast for a stiffer, more direct feel and more immediate feedback. Tapered for optimal load transfer and lower surface friction. Refined one-piece design for a strong, durable and corrosion-free choice across all disciplines. The CF72 mast is ideal for shallower waters, and prone surf foiling. choice across all disciplines. The longer CF85 mast increases overall ride performance in choppy conditions.
GEOLOCK LOAD BEARING CONNECTION
Engineered to last, our unique GeoLock tapered geometry locking system provides a more effective load-bearing connection between the Mast and Fuselage, locking them together, so they feel like one piece. Screws engage the GeoLock while the load transfer now takes place over the full cross-section of the mast profile, allowing for a more efficient load distribution and longer-lasting connection. Patent-pending.
EASY RECOVERY FROM SURFACE BREACHING
In perfect harmony with any Front Wing, our dihedral-shaped carbon pre-preg rear Stabilizer provides control and riding comfort, allowing fast pivoting turns and easy surface breach-recovery. The Stabilizer's positioning on top of the Fuselage allows for a clean, undisturbed approaching flow. Surface piercing of the Stabilizer is not a problem, as the Front Wing sits deeper in the water and is still fully submerged, giving you that extra time to react and adjust your ride height.
INDUSTRY-STANDARD 165X90MM BOLT PATTERN
The Sonar Foil System can be mounted to any foil board with a 165x90mm bolt pattern. Foil Board and foil to board attachment screws sold separately
CARBON FUSELAGE 600MM
New high-strength 600m pre-preg carbon fuselage weighs ~50% less than the A600, with equal strength and stiffness. Strong, durable and corrosion resistant. The shorter length C600 Fuselage improves pumpability and has a sporty feel with earlier take-offs. Features GeoLock. Fits all Carbon and Aluminium Sonar Masts.
MODULAR FOIL SYSTEM
Customise your ride with our fully interchangeable foil parts to explore multiple disciplines and riding styles all with one setup.
SUPPLIED WITH SONAR TRAVEL BAG
Stow your Sonar Quiver safely in between sessions with our Heavy Duty 600D Padded Travel Bag. Roomy enough inside to fit the complete Sonar Foil set, including all three wings and three masts inside their individual covers. The bag also has enough depth to leave the Board Adaptor connected to the mast, making your foil packdown faster. Designed with straps, clips and interior pockets to secure contents. Your worry-free travel companion. Included with every complete Foil Edition.
FOIL TO BOARD MOUNTING HARDWARE SUPPLIED WITH NORTH FOIL BOARDS
FRONT WINGS SOLD SEPARATELY
INDUSTRY-STANDARD 165X90MM BOLT PATTERN
The Sonar Foil System can be mounted to any foil board with a 165x90mm bolt pattern. Foil Board and foil to board attachment screws sold separately
HIGHLIGHTS
Performance crossover kite/surf/wing foil
Reflexed technology for stability and speed
Self-trimming
WHAT RIDERS SAY
"That feel... relax, glide. It’s a new day so enjoy it." - Daniel Kereopa
Kite / Surf / Wing / SUP / Wake
The Sonar 1500R is a true crossover wing with real performance across every foiling discipline. So stable, you’ll feel like you’re like standing on the ground. The 1500R is great for prone foil surfing in medium to large waves, has a smooth carvy feel and fits nicely in the pocket. Its predictable lift gives you time to find a comfortable stance without fighting to keep the nose down as the foil accelerates. So you’re able to remain in the same position over the entire speed range. The balance of the foil system means you can place your back foot further behind the mast, letting you ride the board more like a shortboard. Our new, specialised reflexed-camber foil section design gives the wing pitch stability and prevents your board’s tendency to nose up strongly when you first get going. Thus, it eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave. The Sonar reflexed wings have a relatively large surface area, which makes them highly controllable, with incredible roll and pitch stability. Usually, a large wing means more drag, hence less speed. But because you can position the reflexed wings on the fuselage with a lower angle of attack, they feel smaller than they are in terms of their speed range and responsiveness. A reflexed wing gives you impressive control throughout the entire speed range, with extreme top-end speeds unheard of for a wing that size.
Performance crossover kite/surf/wing foil
A true crossover wing with real performance across every foiling discipline. So stable, you’ll feel like you’re like standing on the ground. The 1500R has a smooth carvy feel and fits nicely in the pocket.
Reflexed technology for stability and speed
Our new, specialised reflexed-camber foil section design gives the wing pitch stability all on its own. It’s like we’ve built a mini-stabilizer into the trailing edge of the wing which counters the downward pitching moment.
Self-trimming
The reflexed wing prevents your board’s tendency to nose up strongly when you first get going. Thus it eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave.
TIGHT CARVING AND SNAPPY TURNS
Low to medium aspect ratio swept wing for maximum fun on and off the waves, with a low stall speed.
PRE-PREG CARBON TECHNOLOGY
Ultimate high-performance composite material
PERFORMANCE CROSSOVER KITE/SURF/WING FOIL
A true crossover wing with real performance across every foiling discipline. So stable, you’ll feel like you’re like standing on the ground. The 1500R has a smooth carvy feel and fits nicely in the pocket.
REFLEXED TECHNOLOGY FOR STABILITY AND SPEED
Our new, specialised reflexed-camber foil section design gives the wing pitch stability all on its own. It’s like we’ve built a mini-stabilizer into the trailing edge of the wing which counters the downward pitching moment and gives you impressive control throughout the entire speed range, with extreme top-end speeds unheard of for a wing that size.
SELF-TRIMMING
The reflexed wing prevents your board’s tendency to nose up strongly when you first get going. Thus it eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave.
MASSIVE RANGE, LOW STALL SPEED AND INCREDIBLE CONTROL
The Sonar reflexed wings have a relatively large surface area, which makes them highly controllable, with incredible roll and pitch stability. Usually, a large wing means more drag, hence less speed. But because you can position the reflexed wings on the fuselage with a lower angle of attack, they feel smaller than they are in terms of their speed range and responsiveness.
Das kurze und kompakte Kite Foil 125 Inflatable ist nicht nur einfach zu transportieren, dank des raffinierten Shapes und der steifen Konstruktion macht es auch richtig Spass beim Foilen. Die beiden 10’’-Tracks für die Foilaufnahme sind elegant integriert und mit Fibreglass-Stringern oben und unten gut verankert. Das Design unserer Boxen verhindert, dass das Board vor dem Foil sich biegt.
HIGHLIGHTS
High lift, low drag and fast upwind
High performance glide
Prepreg carbon technology
WHAT RIDERS SAY
"The big function of the High Aspect wing is upwind performance - it’s perfect for wingfoiling in flat or choppy water." - George Hradil
Wing / SUP
The new HA1450 is the bigger brother of the HA1250, designed for a heavier rider or lighter wind days. Highly efficient with great lift, speed, glide and pumpability in flat or choppy water. The HA1450 has a high wingspan to chord length ratio, with a relatively thin profile – similar to a sailplane glider wing. With this style of wing, you generate maximum efficiency and lift. The short chord length defines the profile thickness, and with a thin profile comes reduced drag. The span gives you stability, with a slightly longer radius turn than a lower aspect ratio wing of the same size.
High lift, low drag and fast upwind
Generate maximum efficiency and lift. The short chord length defines the profile thickness, and with a thin profile comes reduced drag. The span gives you stability, with a slightly longer radius turn than a lower aspect ratio wing of the same size.
High performance glide
When foil surfing, the efficiency and pumpability that allows you to connect wave after wave is insane. The Sonar High Aspect is an ideal wing for those days when the rides are long, and waves peel endlessly across the bay.
Prepreg carbon technology
Ultimate high-performance composite material
DETAILS
UPWIND SPEED AND EFFICIENCY FOR WINGFOILING
The biggest single thing that our high aspect front wing brings to the table for wing-foiling is windward performance. These wings beat upwind like nothing else.
HIGH LIFT, LOW DRAG AND PUMPABILITY
The high aspect Sonar Wing has a high wingspan to chord length ratio, with a relatively thin profile – similar to a sailplane glider wing. With this style of wing, you generate maximum efficiency and lift. The short chord length defines the profile thickness, and with a thin profile comes reduced drag. The span gives you stability, with a slightly longer radius turn than a lower aspect ratio wing of the same size.
HIGH PERFORMANCE GLIDE
When foil surfing, the efficiency and pumpability that allows you to connect wave after wave is insane. The Sonar High Aspect is an ideal wing for those days when the rides are long, and waves peel endlessly across the bay.
PREPREG CARBON TECHNOLOGY
Ultimate high-performance composite material
Flat, loose and fast, the new S208 Stabilizer is another high performance upgrade to the Sonar Foil System for experienced riders. The S208 has a higher aspect ratio than the S210, which means less drag, and the flatter rondure (front view) enables more manoeuvrability. As we’ve increased our front wing range, we’ve needed to match the lift force of the front wing with the stabilizer. While your front wing creates vertical lift, your stabilizer has a downward acting force, which prevents the front wing from nose-diving. A larger stabilizer translates into more front foot pressure, while a smaller stabilizer equals less front foot pressure. The North stabs are mounted on top of the fuselage, which helps them to avoid turbulence from the flow of the front wing, creating a smoother ride. This top mounting also gives the rider an early breach warning - the stab pierces the water surface first, giving you a better chance of recovery before your front wing gets too high. Like the Front Wings, all Sonar Stabilizers are pre-preg carbon construction, ensuring optimal stiffness and direct performance. The thin profile section reduces drag, while the material properties help maintain structural integrity and rigidity. Stabs have a huge influence on performance. As you progress to smaller wing sizes, we recommend changing to a smaller stabilizer to be more manoeuvrable. Experienced riders will really feel the difference. A new tail can have a big impact on your style.
Features
Clean undisturbed flow
Flat
loose and fast
Easy breach recovery
Thinner profile
Higher aspect ratio
Less surface friction for better glide
Materials
Carbon Pre-preg
HIGHLIGHTS
Sonar AF72 or AF85 Mast
GeoLock Load Bearing Connection
Easy recovery from surface breaching
WHERE IT THRIVES
Wing, surf or SUP foiling
WHAT RIDERS SAY
"Extremely intuitive - first try felt like I've been riding on it for years." - Jesse Richman
No limits
The new refined aluminium foil section gives the best balance between light weight and increased strength for higher loads, so you can wing, SUP, surf and kite foil with confidence, making use of the fully interchangeable Sonar Foil System to extend your playtime on the water. Engineered to last, with exceptional strength to weight ratio, and our unique GeoLock system for a clean, direct feel with minimum resistance on the water. The AF72 mast is ideal for shallower waters, and prone surf foiling. The AF85 mast increases overall ride performance in choppy conditions.
Sonar AF72 or AF85 Mast
The new refined aluminium foil section gives the best balance between light weight and increased strength for higher loads. 30% stiffer than the AK mast yet only 13% heavier.
GeoLock Load Bearing Connection
Engineered to last, our unique GeoLock tapered geometry locking system provides a more effective load-bearing connection between the Mast and Fuselage. Screws engage the GeoLock so the load transfer takes place over the full cross-section of the mast profile.
Easy recovery from surface breaching
In perfect harmony with any Front Wing, our dihedral-shaped carbon pre-preg rear Stabilizer provides control and riding comfort, allowing fast pivoting turns and easy surface breach-recovery.
DETAILS
SONAR AF72 OR AF85 MAST
The new refined aluminium foil section gives the best balance between light weight and increased strength for higher loads. 30% stiffer than the AK mast yet only 13% heavier, the AF72 mast is ideal for shallower waters, and prone surf foiling. The AF85 mast performs across all disciplines and offers you more ride height to clear waves or to heel over for tighter turns. It is also more forgiving in rougher conditions.
GEOLOCK LOAD BEARING CONNECTION
Engineered to last, our unique GeoLock tapered geometry locking system provides a more effective load-bearing connection between the Mast and Fuselage, locking them together, so they feel like one piece. Screws engage the GeoLock while the load transfer now takes place over the full cross-section of the mast profile, allowing for a more efficient load distribution and longer-lasting connection. Patent pending.
EASY RECOVERY FROM SURFACE BREACHING
In perfect harmony with any Front Wing, our dihedral-shaped carbon pre-preg rear Stabilizer provides control and riding comfort, allowing fast pivoting turns and easy surface breach-recovery. The Stabilizer's positioning on top of the Fuselage allows for a clean, undisturbed approaching flow. Surface piercing of the Stabilizer is not a problem, as the Front Wing sits deeper in the water and is still fully submerged, giving you that extra time to react and adjust your ride height.
SONAR FOIL BOARD ADAPTOR
New Board Adaptor for the AF72 and AF85 masts. FE-Analysis allows us to optimise the structure, increase strength in the areas of highest stress concentration and reduce unecessary weight in lower stress areas. Incorporates a strong geometry locking connection for better energy transfer and a more direct feel. (Not compatible with AK Mast Series)
INDUSTRY-STANDARD 165X90MM BOLT PATTERN
The Sonar Foil System can be mounted to any foil board with a 165x90mm bolt pattern. Foil Board and foil to board attachment screws sold separately
FUSELAGE 600MM
CNC-machined anodised aeronautical grade 6061-T6 aluminum Fuselage. Hydrodynamically optimised shape for minimum resistance.
SUPPLIED WITH SONAR TRAVEL BAG
Stow your Sonar Quiver safely in between sessions with our Heavy Duty 600D Padded Travel Bag. Roomy enough inside to fit the complete Sonar Foil set, including all three wings and three masts inside their individual covers. The bag also has enough depth to leave the Board Adaptor connected to the mast, making your foil packdown faster. Designed with straps, clips and interior pockets to secure contents. Your worry-free travel companion. Included with every complete Foil Edition.
MODULAR FOIL SYSTEM
Customise your ride with our fully interchangeable foil parts to explore multiple disciplines and riding styles all with one setup.
FOIL TO BOARD MOUNTING HARDWARE SUPPLIED WITH NORTH FOIL BOARDS
FRONT WING SOLD SEPARATELY
Versatile and progressive, the IC6 300 stabilizer is the perfect match for the IC6 950 and GRAVITY FCT front wings. Equipped with generous winglets, this stabilizer offers fantastic control with enough surface area that will help you feel fully confident in all situations.
Versatile, intuitive, and predictable
Large range of use
Built with the IC6 technology, it is very durable and designed to be securely mounted on F-ONE fuselages. Its profile and angle of incidence were tuned to achieve a very intuitive balance which will help you maneuver your foil more easily.
Ref. 77207-0301
Recommended Plane:
HIGHLIGHTS
Performance crossover wing for heavier riders or lighter winds
Reflexed technology for stability and speed
Self-trimming
WHAT RIDERS SAY
"Excellent for kiting or surfing and good for winging." - George Hradil
Wing / Surf / SUP / Kite / Wake
The new reflexed 1850R front wing gives you impressive control throughout the entire speed range, with extreme top-end speeds for such a large wing and an unbelievably low stall speed. Also a true crossover wing, the 1850R has more lift than the 1500R. In smaller to medium waves, prone foil surfers can perfect shorter radius surf-style turns with ease. Great for wing-foiling in all conditions and perfect for learning to foil, the 1850R is also still kite-able. Featuring our new, specialised reflexed-camber foil section design to give the wing pitch stability and prevent your board’s tendency to nose up strongly when you first get going. This eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave. The 1850R has a relatively large surface area, which makes it highly controllable, with incredible roll and pitch stability. Usually, a large wing means more drag, hence less speed. But because it is positioned on the fuselage with a lower angle of attack, the 1850R feels smaller than it is in terms of speed range and responsiveness.
Performance crossover wing for heavier riders or lighter winds
In smaller to medium waves, prone foil surfers can perfect shorter radius surf-style turns with ease. Great for wing-foiling in all conditions and perfect for learning to foil, the 1850R is also still kite-able.
Reflexed technology for stability and speed
Our new, specialised reflexed-camber foil section design gives the wing pitch stability all on its own. It’s like we’ve built a mini-stabilizer into the trailing edge of the wing.
Self-trimming
The reflexed wing prevents your board’s tendency to nose up strongly when you first get going. Thus it eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave.
DETAILS
PRE-PREG CARBON TECHNOLOGY
Ultimate high-performance composite material
PERFORMANCE CROSSOVER WING FOR HEAVIER RIDERS OR LIGHTER WINDS
In smaller to medium waves, prone foil surfers can perfect shorter radius surf-style turns with ease. Great for wing-foiling in all conditions and perfect for learning to foil, the 1850R is also still kite-able.
REFLEXED TECHNOLOGY FOR STABILITY AND SPEED
Our new, specialised reflexed-camber foil section design gives the wing pitch stability all on its own. It’s like we’ve built a mini-stabilizer into the trailing edge of the wing which counters the downward pitching moment and gives you impressive control throughout the entire speed range, with extreme top-end speeds unheard of for a wing that size.
SELF-TRIMMING
The reflexed wing prevents your board’s tendency to nose up strongly when you first get going. Thus it eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave.
MASSIVE RANGE, LOW STALL-SPEED, INCREDIBLE CONTROL
The Sonar reflexed wings have a relatively large surface area, which makes them highly controllable, with incredible roll and pitch stability. Usually, a large wing means more drag, hence less speed. But because you can position the reflexed wings on the fuselage with a lower angle of attack, they feel smaller than they are in terms of their speed range and responsiveness.
Q01K NOT INCLUDED (KRAKEN QUICK RELEASE)

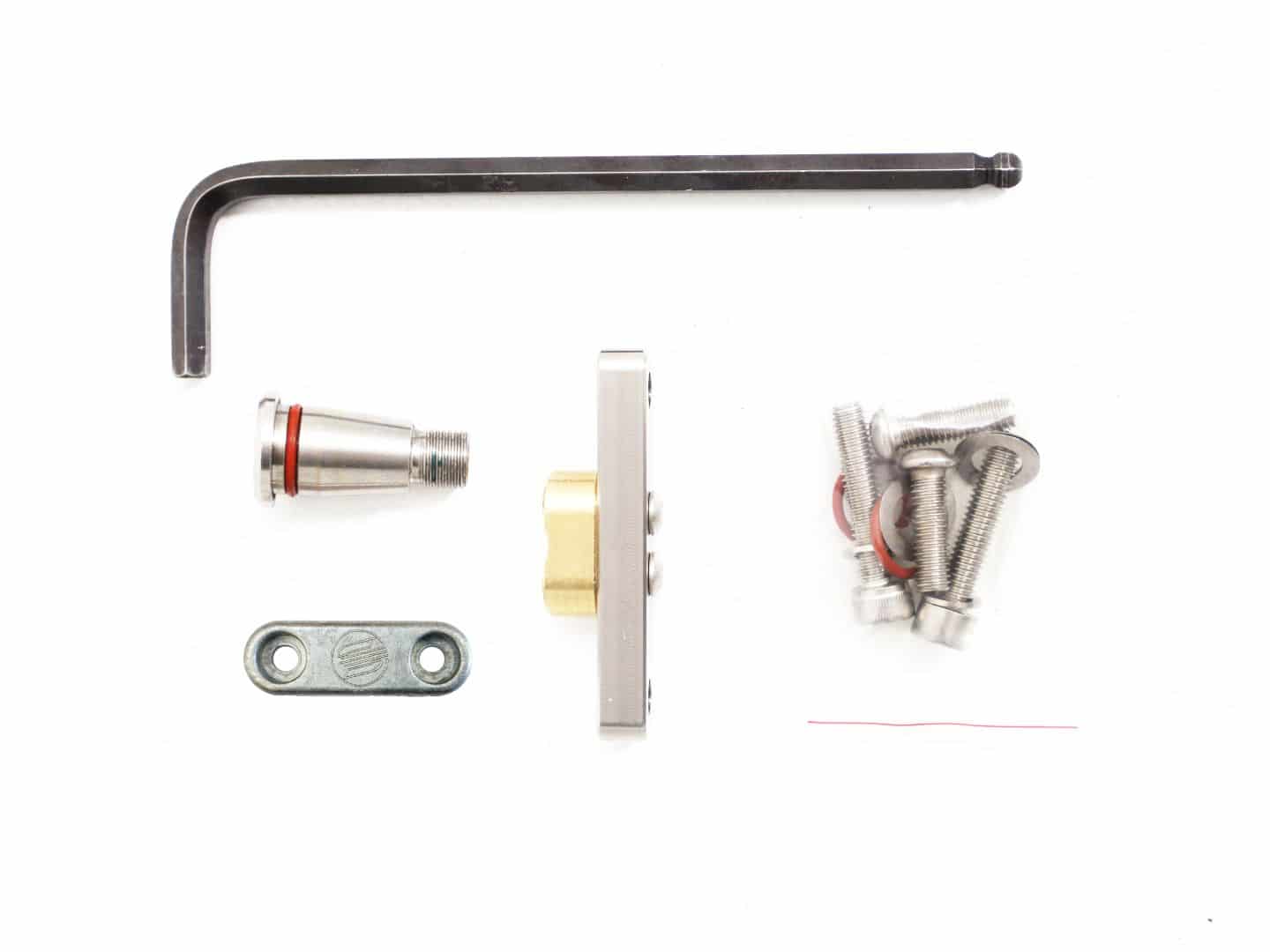

Kraken Mast Plate
Kraken Modular System
ALL-ROUND
Connection SystemKraken Modular System
The Kraken Mast Plate is one of the modular connection systems for masts, together with its tuttle counterpart (T03K).
The strong point of this system is its modularity, as it is always possible to use your mast both with plate and with tuttle.
This Plate has been designed for maximum lightness and strength. It has been milled directly in our factory starting from premium aluminum ingots and then it has been deeply anodized by certified partners.
The Kraken Mast Plate also makes it possible to upgrade your set-up with the quick release system (Q01K), thanks to which you can assemble and disassemble your hydrofoil in a few seconds, without losing the configuration on the board.
Flat, loose and even faster, the new S178 Stabilizer is a high-speed upgrade to the Sonar Foil System for experienced riders. We recommend pairing the S178 with Front Wing size HA950, or smaller. The S178 has a higher aspect ratio than the S208.
Features
Top mounted for early breach recovery
Carbon pre-preg construction
Thin profile section for reduced drag
Materials
Pre-Preg Carbon
FUSION ALLOY TOP PLATE MKII
HIGH PERFORMANCE - DURABILITY
SIZES: ONE SIZE
The Fusion Alloy Top Plate is constructed from extruded aircraft grade aluminium that result in an incredibly rigid mast to board socket connection. It can be used with any Cab Fusion alloy mast.
Features:
Precision CNC machined aircraft grade, anodized 6061-T6 aluminium
Incredible torsional stiffness
SPIRIT CARVE 950 / 90
CARVE / FREERIDE
Smoothes Carving und gute Wendigkeit: das Spirit Carve.
HAUPTMERKMALE
DUOTONE SPIRIT CARVE
BESTES CARVING
SMOOTHES UND KONTROLLIERTES CARVING IN ALLEN BEDINGUNGEN.
HOHE WENDIGKEIT UND ÜBERRAGENDER GLIDE
VERSCHIEDENE RADIEN BEI TURNS UND TACKS SOWIE LANGE GLIDES FALLEN LEICHT UND MACHEN EINFACH SPASS
SCHNELLES WAVE-RIDING
IN WELLEN HAT DAS CARVE EINE VORHERSEHBARE BESCHLEUNIGUNG FÜR EINFACHES WELLENREITEN.
NEUE ALUMINIUM-FUSELAGE MIT POCKET FÜR MASTVERBINDUNG
EINE EINZIGARTIGE NEUE ALUMINIUMFUSELAGE MIT POCKET FÜR DIE MASTVERBINDUNG GARANTIERT MAXIMALE STEIFIGKEIT SOWIE DIE BESTE UND DIREKTESTE ÜBERTRAGUNG VON STEUER-IMPULSEN.
NEUES MASTPROFIL MIT LÄNGERER PROFILLÄNGE
DAS NEUE MASTPROFIL MIT LÄNGEREM PROFIL VERHINDERT VENTILATION BEI HOHEM SPEED.
VORDERER UND HINTERER WING KOMPLETT AUS CARBON
DER VORDERE UND HINTERE WING AUS REINSTEM CARBON SORGEN FÜR EINE MAXIMALE PERFORMANCE UND EINE ÜBERRAGENDE OPTIK.
DETAILS
DUOTONE SPIRIT CARVE
Der neue 950 Spirit Carve Wing wurde für maximale Wendigkeit und ausgezeichnetes Gliding entwickelt – für Tacks, Jibes und 360s. Er ist eine vereinfachte Version eines reinen Surf-Foil-Wings. Der 950 hat einen frühen Lift und bietet unglaubliche Stabilität, für besonders smoothe und kontrollierte Carves auf kleinen Wellen und im flachen Wasser. Bei diesem Wing dreht sich alles um Kontrolle, Carving, Gliding und nahtlose Transitions, mit einer unglaublichen Stabilität und Vorhersehbarkeit für alle, die nach einem überzeugenden Crossover aus Kite- und Surf-Foil-Feeling suchen.
FUSION CARBON HOLLOW MAST
HIGH PERFORMANCE - LIGHT WEIGHT
SIZES: 74 / 84 / 94 CM
The all-new Hollow Mast system is yet another example of the state of the art foil program from Cab Design Works. It nods to the critical & complete design approach of the team to view every foil component individually with a view to improve stiffness across the entire platform. It implements a bladder molded construction with strategic layering of carbon as far to the outside as possible. This culminates in our stiffest ever mast to front wing connection. This reduction in flex eliminates any lag in the turn and transfers energy while pumping seamlessly through to the front wing.
Features:
Optimized airfoil for low drag to stiffness ratio
TE scallop for improved turning and efficiency
Integrated high modulus mounting plate
Bladder molded, hollow mast construction for superior skin compression, providing ultimate rigidity
Premium high modulus prepreg carbon fiber construction
Barrel Nut compatible(x-series MkII and H-series MKII)
Tapered Fit
Mast Guide:
Insane response. Incredible performance. Our highest quality pre-preg carbon modular foil edition provides a stiffer, more direct feel and more immediate feedback. Engineered with exceptional stiffness for all disciplines, the CF Edition is made from lightweight and durable carbon pre-preg components and has a reduced swing weight for an agile, dynamic and direct feel, and great pumpability. The refined one-piece mast design is tapered for optimal load transfer and lower surface friction, and features our unique GeoLock system. The longer CF85 mast increases overall ride performance in choppy conditions. The CF72 mast is ideal for shallower waters, prone surf foiling and towing. For 2022 we’ve added stability, performance and efficiency with the 700mm Carbon Pre-Preg Fuselage and new S270 Carbon Pre-preg Stabilizer.
Carbon CF72 or CF85 Mast with cover, C700 Fuselage, S270 Stabilizer with cover, Tool Kit, Sonar Fuselage Screw Pack B (M8x35 Screws, M8 Flat Washers), Sonar Stabilizer Screw Pack C (M8x16mm)*, Sonar Travel Bag
Features
Sonar CF85 or CF72 Mast
GeoLock Load Bearing Connection
NEW S270 Carbon Stabilizer with easy breach recovery
Industry-standard 165x90mm bolt pattern
C700 Carbon Fuselage
Modular foil system
Supplied with Sonar CF Edition Travel Bag
Front Wings Sold Separately
Foil to board mounting screws sold separately
Exceptional glide. Our new thinner profile and higher aspect ratio carbon stabilizers offer reduced resistance and a more efficient outline. The S270 is your go-to for all round kite, wing and surf performance, offering optimal balance, speed, efficiency and control. Pair the S210 with a smaller front wing for high-speed performance and a more agile feel. Pair the S320 with a larger front wing for early planing, greater balance and stability.
Features
Clean undisturbed flow
Easy breach recovery
Thinner profile
Higher aspect ratio
More efficient outline shape
Less surface friction for better glide
Materials
Carbon Pre-preg
189,00 €*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
